Tool Features

Core capabilities across the VOLTORK range

Torque or torque & angle modes
Remote control capable
Field configurable / calibratable
Better than 3% accuracy
Industrial durability - all metal construction
Brushless motor with advanced heat management
Field replaceable square drives and reaction arms
Designed and built in the USA

VOLTORK Tools

Modular electric torque system

Shared tooling architecture with interchangeable components, accessories, and coverage from 200 to 2600 ft-lb.

Download Brochure Talk to NexTORK

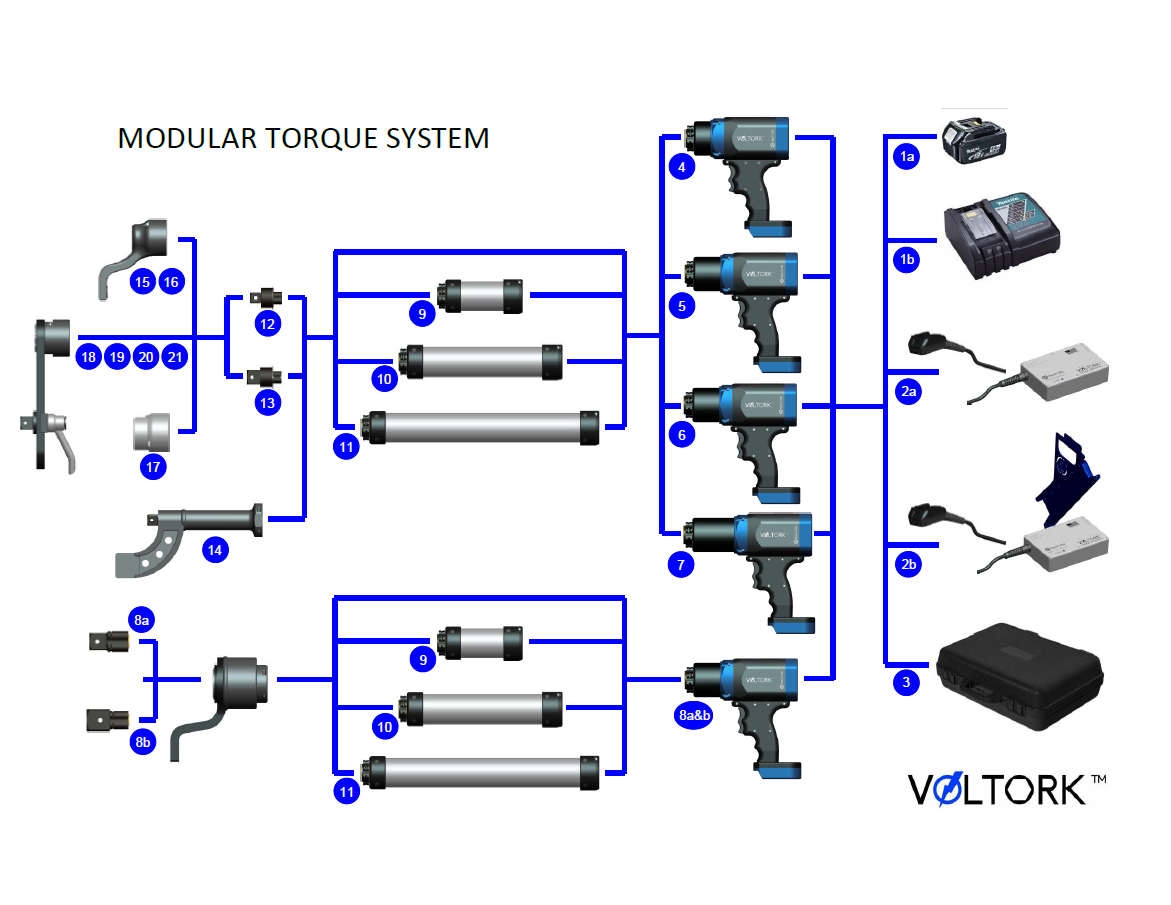

VOLTORK modular torque system chart

System Components

Modular torque system parts and accessories.

Item Part No Description
1a NTC-000001 18V Li-Ion battery, 4.0 Ah
1b NTC-000002 18V battery charger
2a NTA-000077 AC power supply - low profile
2b NTA-000078 AC power supply - carry handle and cable storage
3 NTC-000003 Case, battery tool
4 NTA-000015 NT200B electric torque wrench, 200 ft-lb, 60.1 RPM
5 NTA-000016 NT500B electric torque wrench, 500 ft-lb, 17.4 RPM
6 NTA-000017 NT800B electric torque wrench, 800 ft-lb, 12.2 RPM
7 NTA-000018 NT1300B electric torque wrench, 1300 ft-lb, 6.6 RPM
8a NTA-000020 NT2600B electric torque wrench, 1" SQ, 2600 ft-lb, 3.0 RPM
8b NTA-000019 NT2600B electric torque wrench, 1-1/2" SQ, 2600 ft-lb, 3.0 RPM
9 NTA-000041 6" tool extension
Item Part No Description
10 NTA-000042 12" tool extension
11 NTA-000043 18" tool extension
12 NTA-000044 3/4" standard square drive
13 NTA-000045 1" standard square drive
14 NTA-000046 Wheel bolting attachment
15 NTA-000031 Standard steel reaction arm, 1300 ft-lb max
16 NTA-000028 Standard aluminum reaction arm, 500 ft-lb max
17 NTF-000039 Reaction arm weld blank for custom applications
18 NTA-000084 Sliding reaction arm 3/4" square drive, 3" to 8.5" range
19 NTA-000083 Sliding reaction arm 1" square drive, 3" to 8.5" range
20 NTA-000082 Sliding reaction arm 3/4" square drive, 4" to 12" range
21 NTA-000081 Sliding reaction arm 1" square drive, 4" to 12" range

Tool Lineup

All tools with model-by-model specifications.

NT200B

NT200B

Output Drive 3/4" SQ
Max Torque 200 ft-lb
Min Torque 20 ft-lb
Max Speed 60.1 RPM
System Accuracy <3%
Tool Weight 9.0 lb
Total Weight 10.6 lb
Power Source 100 to 240 VAC or Makita 18V batteries
Warranty 1 year limited
NT500B

NT500B

Output Drive 3/4" or 1" SQ
Max Torque 500 ft-lb
Min Torque 50 ft-lb
Max Speed 17.4 RPM
System Accuracy <3%
Tool Weight 10.0 lb
Total Weight 11.7 lb
Power Source 100 to 240 VAC or Makita 18V batteries
Warranty 1 year limited
NT800B

NT800B

Output Drive 3/4" or 1" SQ
Max Torque 800 ft-lb
Min Torque 80 ft-lb
Max Speed 12.2 RPM
System Accuracy <3%
Tool Weight 10.0 lb
Total Weight 13.4 lb
Power Source 100 to 240 VAC or Makita 18V batteries
Warranty 1 year limited
NT1300B

NT1300B

Output Drive 1" SQ
Max Torque 1300 ft-lb
Min Torque 130 ft-lb
Max Speed 6.6 RPM
System Accuracy <3%
Tool Weight 11.3 lb
Total Weight 14.9 lb
Power Source 100 to 240 VAC or Makita 18V batteries
Warranty 1 year limited
NT2600B

NT2600B

Output Drive 1" or 1-1/2" SQ
Max Torque 2600 ft-lb
Min Torque 260 ft-lb
Max Speed 3.0 RPM
System Accuracy <3%
Tool Weight 19.9 lb
Total Weight 19.9 lb
Power Source 100 to 240 VAC or Makita 18V batteries
Warranty 1 year limited
